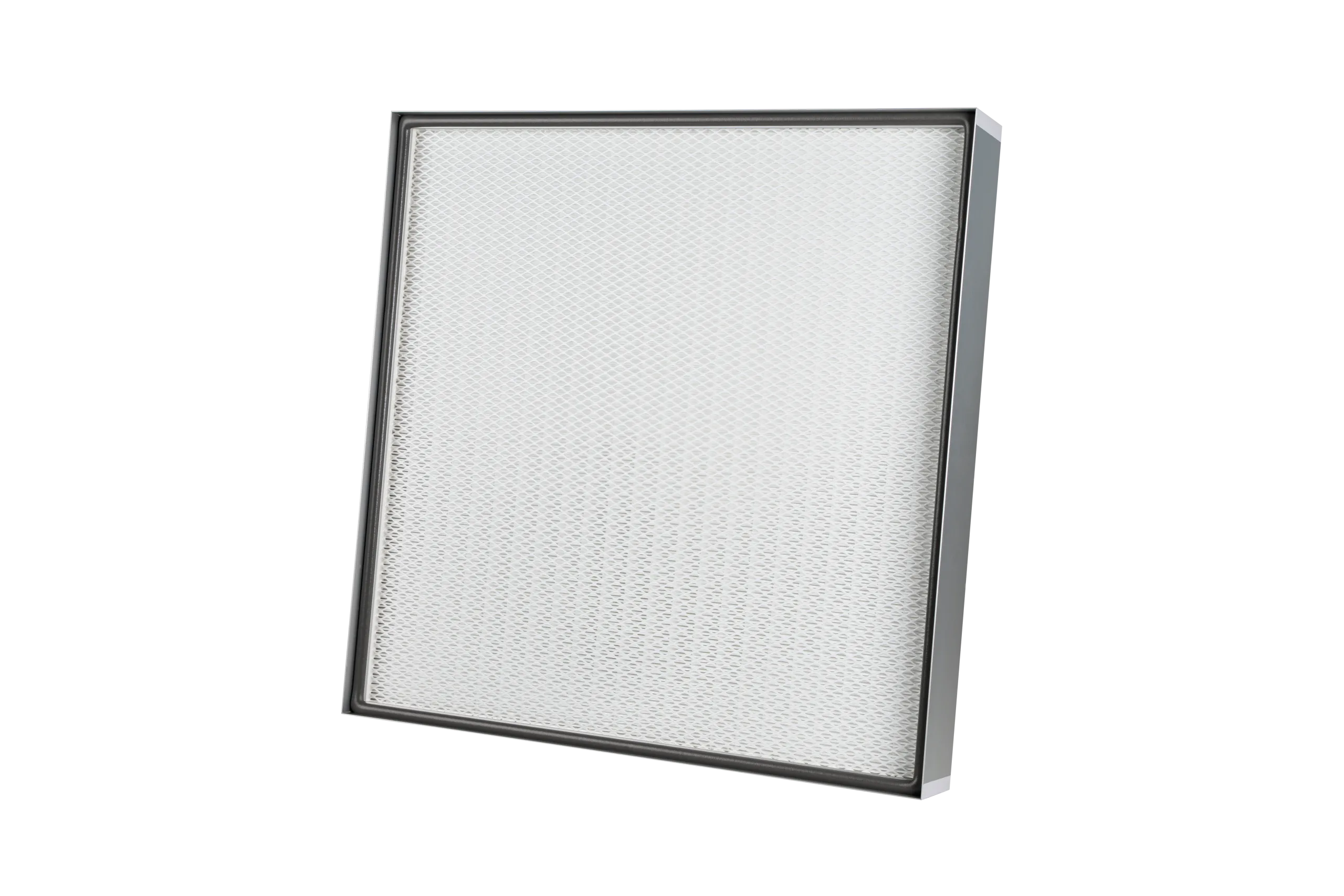

KNIFE-EDGE
| Application | Cleanroom supply- and return air, fan filter units, cleanroom gel ceiling |
| Type | EPA-HEPA and ULPA panel with a KnifeEdge for Gel Seal sealing and Fan Filter Units. |
| Media | Waterproof micro glass fibers |
| Gasket | None or 2 component polyurethane one piece endless seal |
| Separator | Thermoplastic hotmelt |
| Frame | Extruded anodized alumunium |
| Faceguard | Mild steel epoxy coated |
KNIFE-EDGE
| Style code | Dimensions WxHxD (mm) | Filter classification EN1822 | Nominal air flow (m/s) | Air volume (m³/hr) | Initial pressure drop (Pa) |
|---|---|---|---|---|---|
| TA-2-KE-14-G0-F3 | 610x610x86 | H14 | 0.45 | 600 | 120 |
| TA-2-KE-14-G0-F3 | 610x762x86 | H14 | 0.45 | 750 | 120 |
| TA-2-KE-14-G0-F3 | 610x1220x86 | H14 | 0.45 | 1200 | 120 |
| TA-2-KE-14-G0-F3 | 610x1524x86 | H14 | 0.45 | 1500 | 120 |
| TA-2-KE-14-G0-F3 | 610x1830x86 | H14 | 0.45 | 1800 | 120 |
| TA-3-KE-14-G0-F3 | 610x610x110 | H14 | 0.45 | 600 | 85 |
| TA-3-KE-14-G0-F3 | 610x762x110 | H14 | 0.45 | 750 | 85 |
| TA-3-KE-14-G0-F3 | 610x1220x110 | H14 | 0.45 | 1200 | 85 |
| TA-3-KE-14-G0-F3 | 610x1524x110 | H14 | 0.45 | 1500 | 85 |
| TA-3-KE-14-G0-F3 | 610x1830x110 | H14 | 0.45 | 1800 | 85 |
