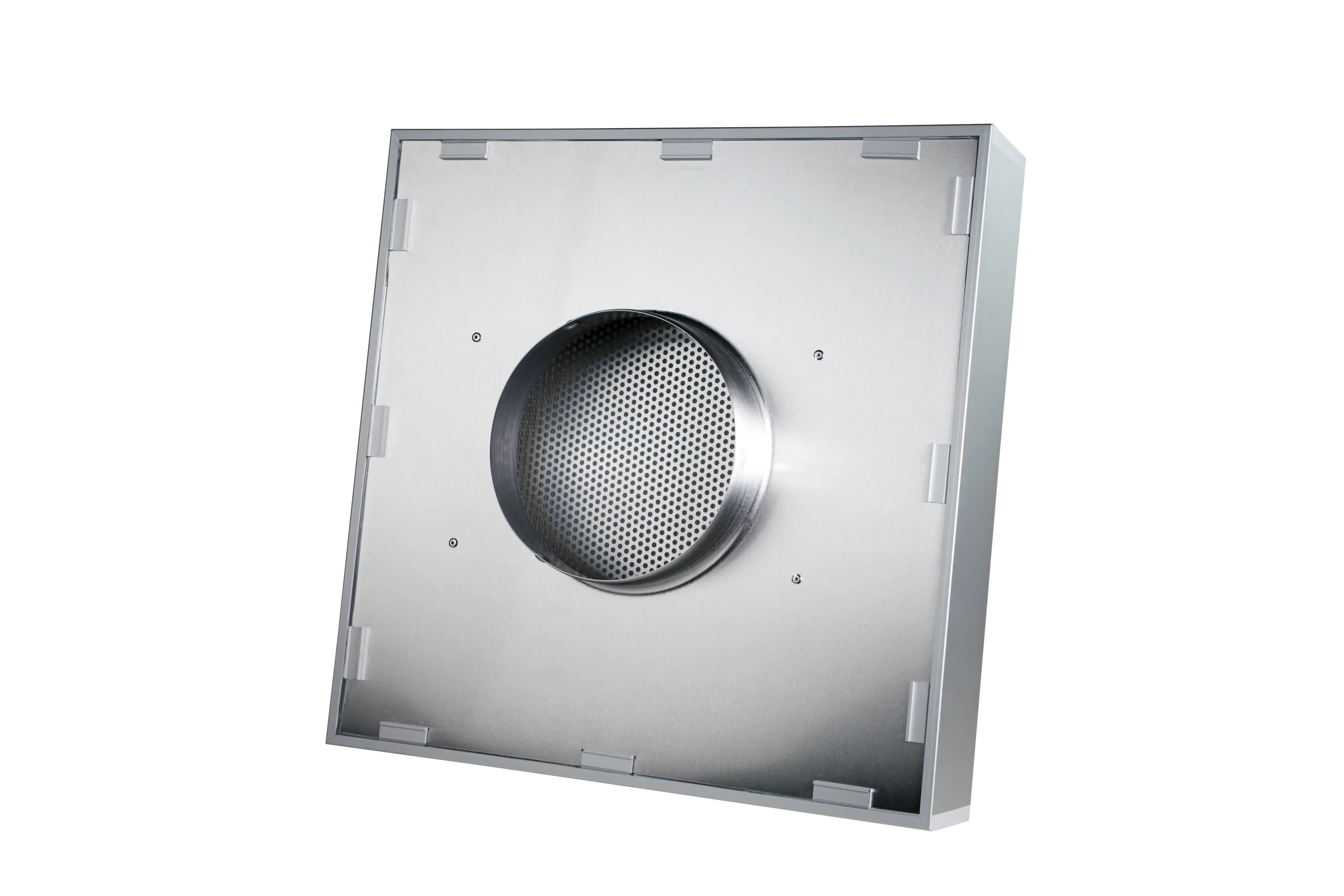

HOOD
| Application | Cleanroom supply air |
| Type | EPA-HEPA and ULPA panel with own pressure plenum |
| Media | Waterproof micro glass fibers |
| Gasket | None or 2 component polyurethane endless seal |
| Separator | Thermoplastic hotmelt |
| Frame | Extruded anodized aluminium |
| Faceguard | Mild steel epoxy coated (air leaving side) |
HOOD
| Style code | Dimensions WxHxD (mm) | Filter classification EN1822 | Nominal air flow (m/s) | Air volume (m³/hr) | Initial pressure drop (Pa) |
|---|---|---|---|---|---|
| Style code | Dimensions WxHxD (mm) | Filter classification EN1822 | Nominal air flow (m/s) | Air volume (m³/hr) | Initial pressure drop (Pa) |
| TA-2-HD-14-G0-F1-250 | 305x610x125 | H14 | 0.45 | 300 | 120 |
| TA-2-HD-14-G0-F1-250 | 610x610x125 | H14 | 0.45 | 600 | 120 |
| TA-2-HD-14-G0-F1-250 | 610x762x125 | H14 | 0.45 | 750 | 120 |
| TA-2-HD-14-G0-F1-250 | 610x915x125 | H14 | 0.45 | 900 | 120 |
| TA-2-HD-14-G0-F1-250 | 610x1220x125 | H14 | 0.45 | 1200 | 120 |
| TA-2-HD-14-G0-F1-250 | 305x610x178 | H14 | 0.45 | 300 | 70 |
| TA-2-HD-14-G0-F1-250 | 610x610x178 | H14 | 0.45 | 600 | 70 |
| TA-2-HD-14-G0-F1-250 | 610x762x178 | H14 | 0.45 | 750 | 70 |
| TA-2-HD-14-G0-F1-250 | 610x1220x178 | H14 | 0.45 | 1200 | 70 |
