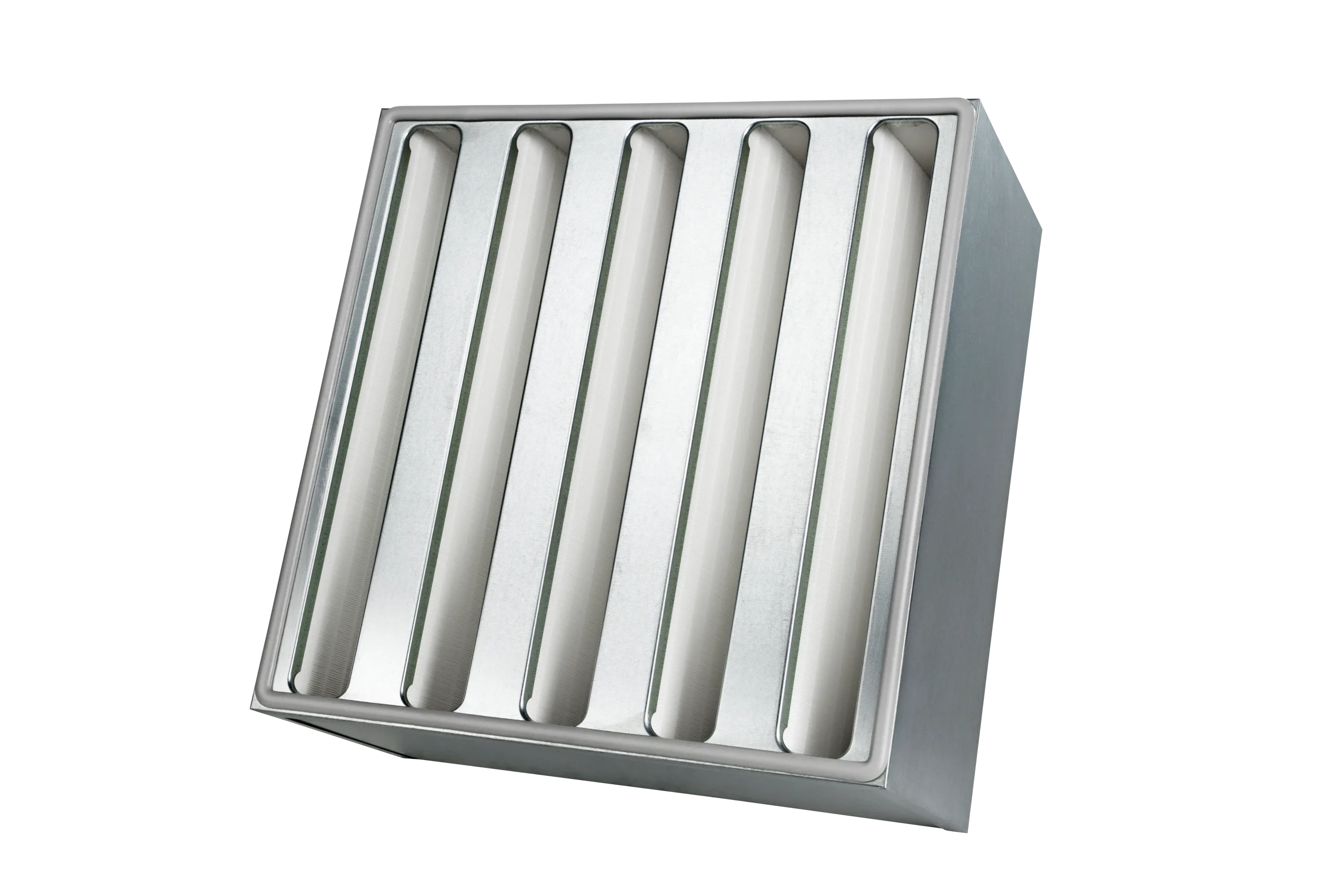

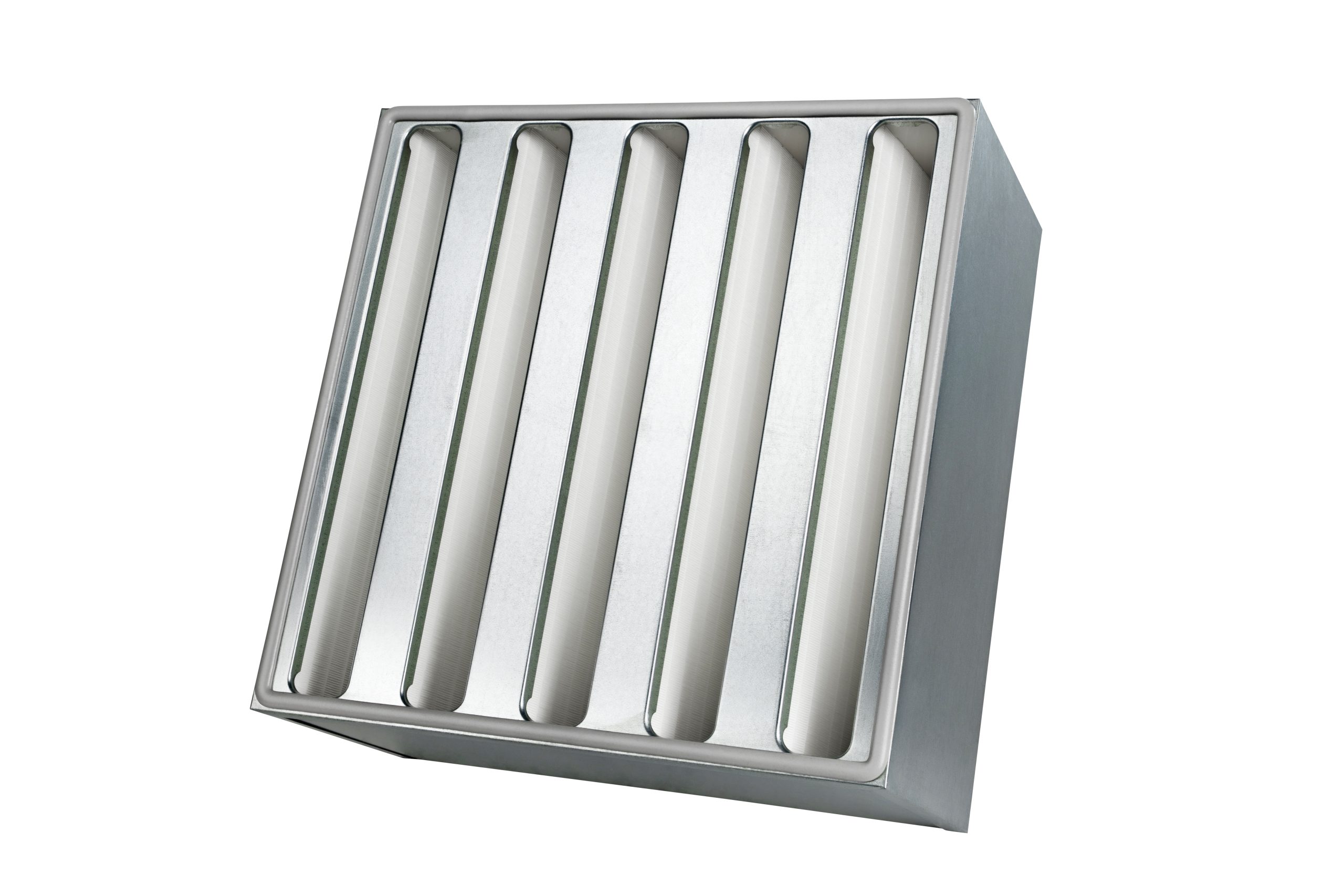

HICAP
| Application | Micro-electronics, pharmaceuticals, medical devices, hospitals and nuclear applications |
| Type | EPA, HEPA |
| Media | Waterproof micro glass fibers |
| Gasket | Half round, 2 component polyurethane, one piece seal |
| Separator | Thermoplastic hotmelt |
| Frame | Galvanized or Stainless Steel |
| Faceguard | None |
HICAP
| Type | Width | Height | Depth | Airflow (m³/h) | Initial resistance (Pa)* | Filter class |
|---|---|---|---|---|---|---|
| TA-HICAP-11-G1-F0-1500 | 610 | 305 | 292 | 1500 | 200 | E11 |
| TA-HICAP-12-G1-F0-1500 | 610 | 305 | 292 | 1500 | 250 | E12 |
| TA-HICAP-13-G1-F0-1500 | 610 | 305 | 292 | 1500 | 250 | H13 |
| TA-HICAP-14-G1-F0-1500 | 610 | 305 | 292 | 1500 | 380 | H14 |
| TA-HICAP-11-G1-F0-2000 | 305 | 610 | 292 | 2000 | 200 | E11 |
| TA-HICAP-12-G1-F0-2000 | 305 | 610 | 292 | 2000 | 250 | E12 |
| TA-HICAP-13-G1-F0-2000 | 305 | 610 | 292 | 2000 | 250 | H13 |
| TA-HICAP-14-G1-F0-2000 | 305 | 610 | 292 | 2000 | 380 | H14 |
| TA-HICAP-11-G1-F0-4000 | 610 | 610 | 292 | 4000 | 200 | E11 |
| TA-HICAP-12-G1-F0-4000 | 610 | 610 | 292 | 4000 | 250 | E12 |
| TA-HICAP-13-G1-F0-4000 | 610 | 610 | 292 | 4000 | 250 | H13 |
| TA-HICAP-14-G1-F0-4000 | 610 | 610 | 292 | 4000 | 380 | H14 |
